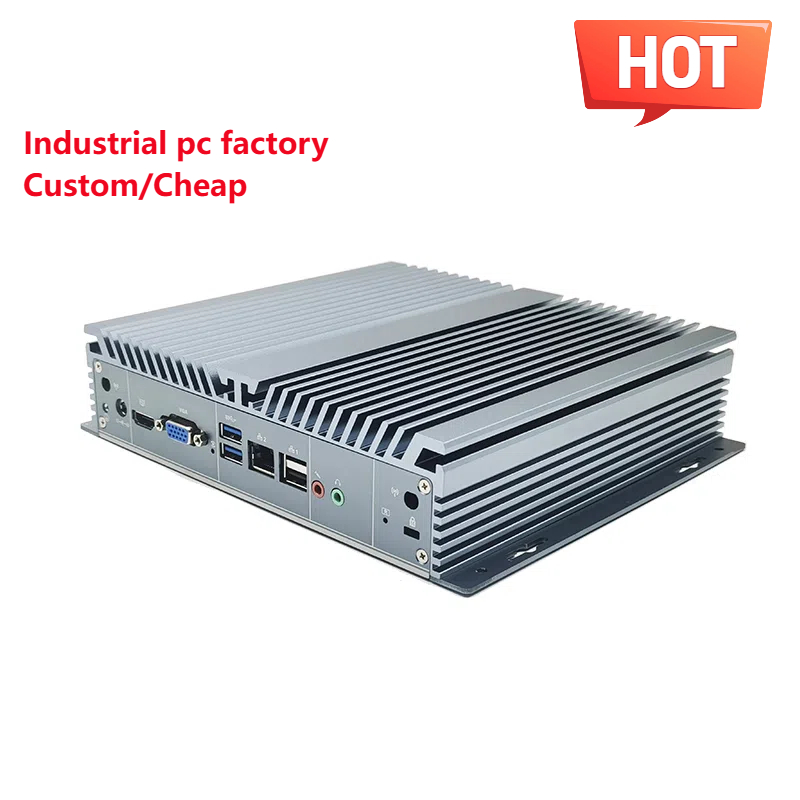

Hot selling custom fanless industrial rugged mini pcs

Basic Info

Model No.: XG-IPC-I01-67

Brand: Lamitouch

Certification: Fcc, Ce, reach, Rohs

Product Status: Stock

Types Of: Embedded Computer, Embedded Industrial Motherboard, Industrial Computer Accessories

Place Of Origin: China

Brand Name: LAMITOUCH

Product Name: industrial mini pc

Processor: Intel® Skylake/Kabylake/Kabylake-R CPU i3-6100U/i3-7100U/i3-8130U i5-6200U/i5-7300U/i5-8250U

CPU: Intel® Skylake/Kabylake/Kabylake-R CPU

Display: Intel® HD Integrated Graphics Double Display 1*HDMI Max. 4096x2304@30Hz 1*VGA Max. 1920 x 1200 @ 60Hz

LAN Chipset: 2 x RTL8111H 10/100/1000 Gigabit Ethernet

Additional Info

Transportation: Land,Ocean,Air,Express

Place of Origin: Guang dong

Supply Ability: 3000 Piece/Pieces per Month

Port: Guangzhou / Shenzhen

Product Description

Our factory mainly produces Touch panel PC,Rugged tablet,and other Industrial PC

.and this XG-IPC-I01-67 style Fanless PC Product Description As follows:

Processor ：Intel® Skylake/Kabylake/Kabylake-R CPU

i3-6100U/i3-7100U/i3-8130U

i5-6200U/i5-7300U/i5-8250U

BIOS:AMI uEFI BIOS, 64Mbit SPI Flash ROM

Memory:2x SO-DIMM，DDR4 Max Support 16GB

Storage:1 x M.2 M Key，Support M.2 2280mm SATA and NVME PCIe SSD

Display:Intel® HD Integrated Graphics Double Display

1*HDMI Max. 4096x2304@30Hz

1*VGA Max. 1920 x 1200 @ 60Hz

LAN Chipset: 2 x RTL8111H 10/100/1000 Gigabit Ethernet

Expansion:1 x Mini PCIe（For Wifi 6+Bluetooth or WWAN+GNSS ）

I/O USB 2 x USB3.0 6 x USB2.0

Audio :1 x LINE-OUT &MIC-IN

Realtek ALC897 HD Audio Decoding Controller

COM 2 x COM DB9

COM1、COM2 Support RS485/RS232 SET(Default Setting: RS232)

COM1、COM2 Support Pin9 +5V/+12V/RI SET

Button:1 x Power Button;1 x Cmos ；1 x OS_recovery （window Linux OS）

LED:1 x Power LED； 1 x HDD LED

Display Port:1 x HDMI Port ；1*VGA Port

Green port:4pin for Power Button and Power LED Single

Antenna:2 x antenna Mounting Hole

LAN:2 x RJ45 Port

DC:1 x DC Jack

Power Requirement:DC in +12V（φ5.5/2.5mm)

Watchdog Timer:H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step

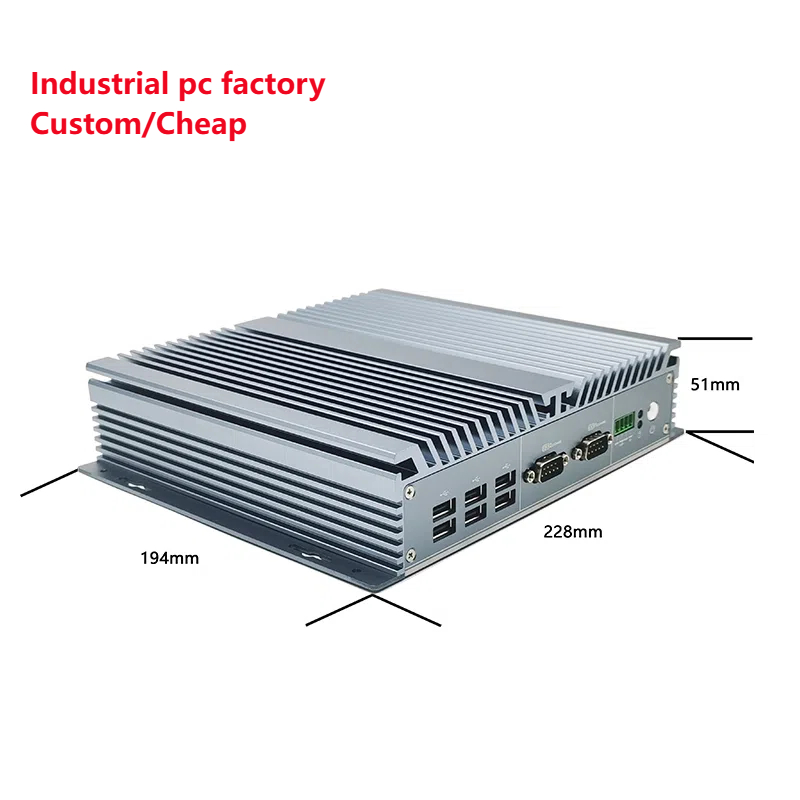

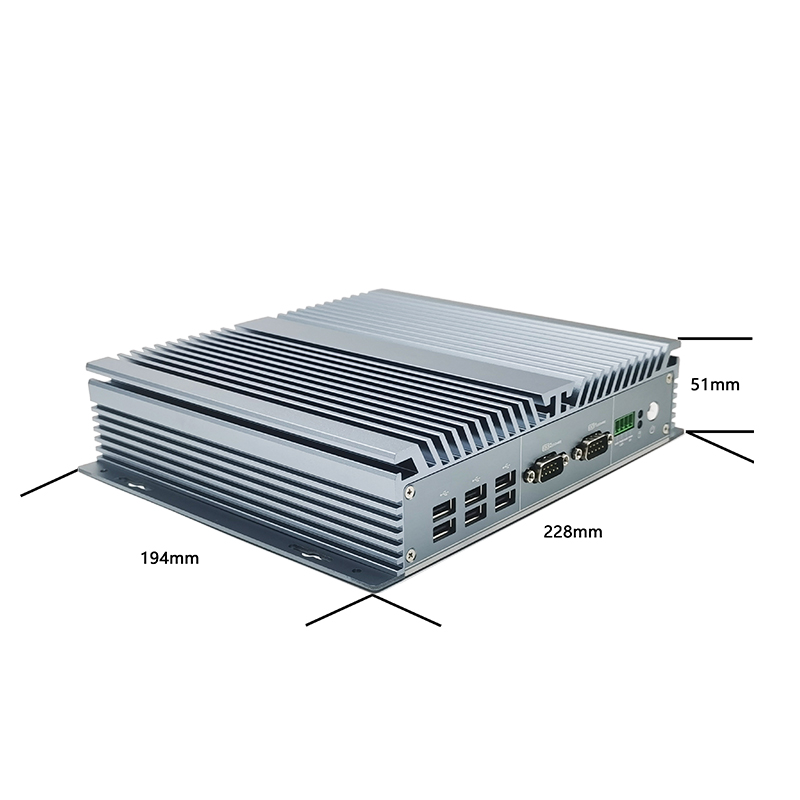

Dimension:194mm x 228mm x 51mm

OS Support:Windows 7, Windows 10, Windows 11, Linux

Operating Temp.:Standard Temperature: -10~60°C (14~140°F) with 0.5m/s air flow

Extend Temperature: -20~70°C (-4~158°F) with 0.5m/s air flow

Storage Temp. -40 ~ 75°C (-40 ~ 167°F)

Operating Humidity:40°C at 95% relative humidity, non-condensing

Weight:4.4lbs (2Kgs)

Product Categories : Industial PC > Fanless Industrial Pc

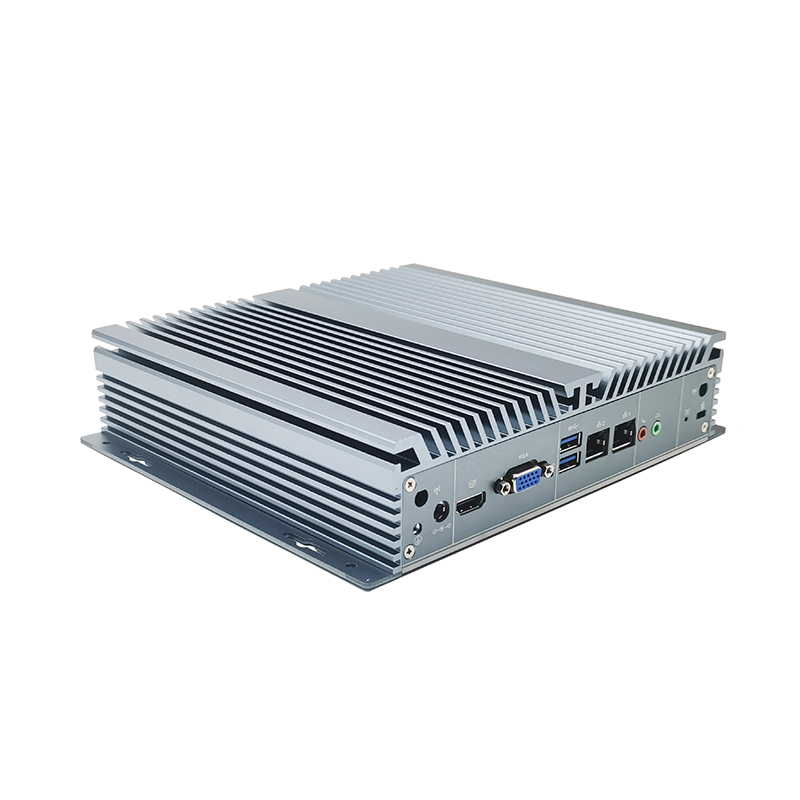

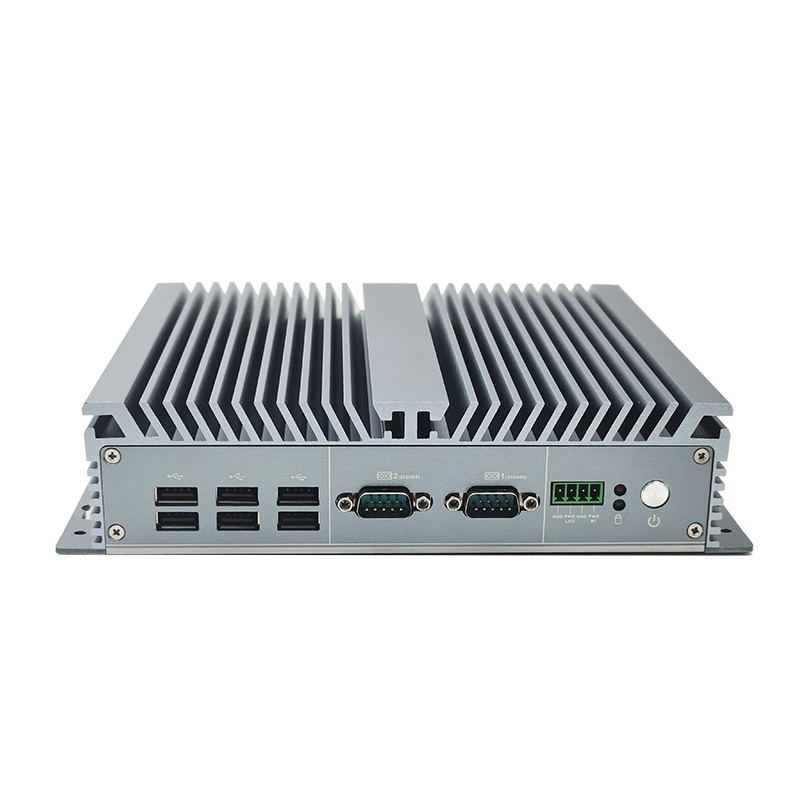

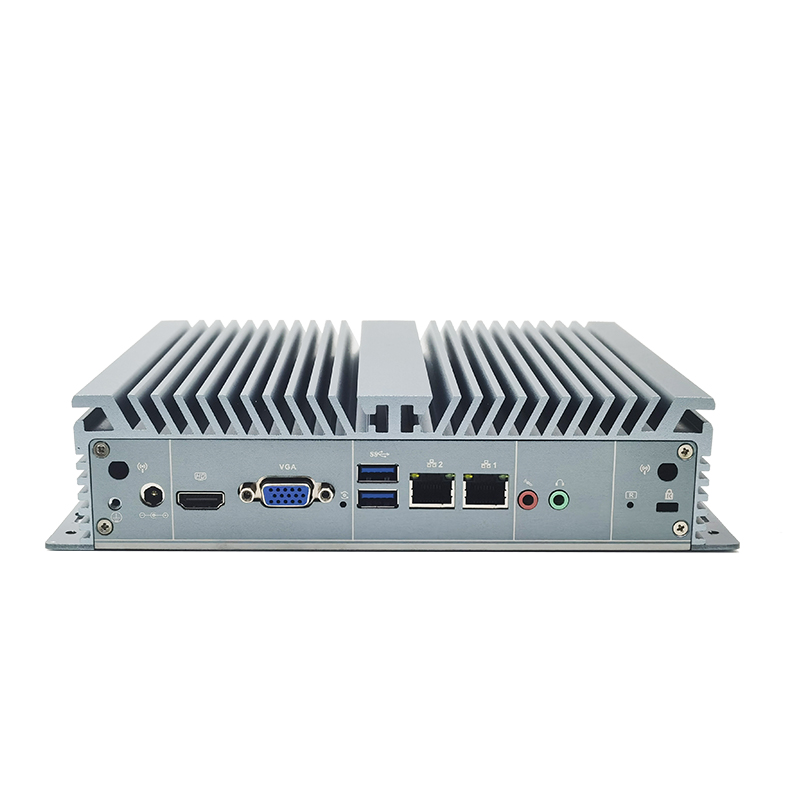

Product Images

Hot selling custom fanless industrial rugged mini pcs
